REST quickstart

A Real-Time STT agent subscribes to the audio content of a media stream and transcribes it into text in real time. This page shows you how to use basic RESTful API methods to start, stop, and query a Real-Time STT agent.

info

The command-line examples are for demonstration purposes only. In a production environment, send RESTful API requests through your application server.

info

This quickstart guide is based on v6.x of the RESTful API. The latest version is v7.x.

Understand the tech

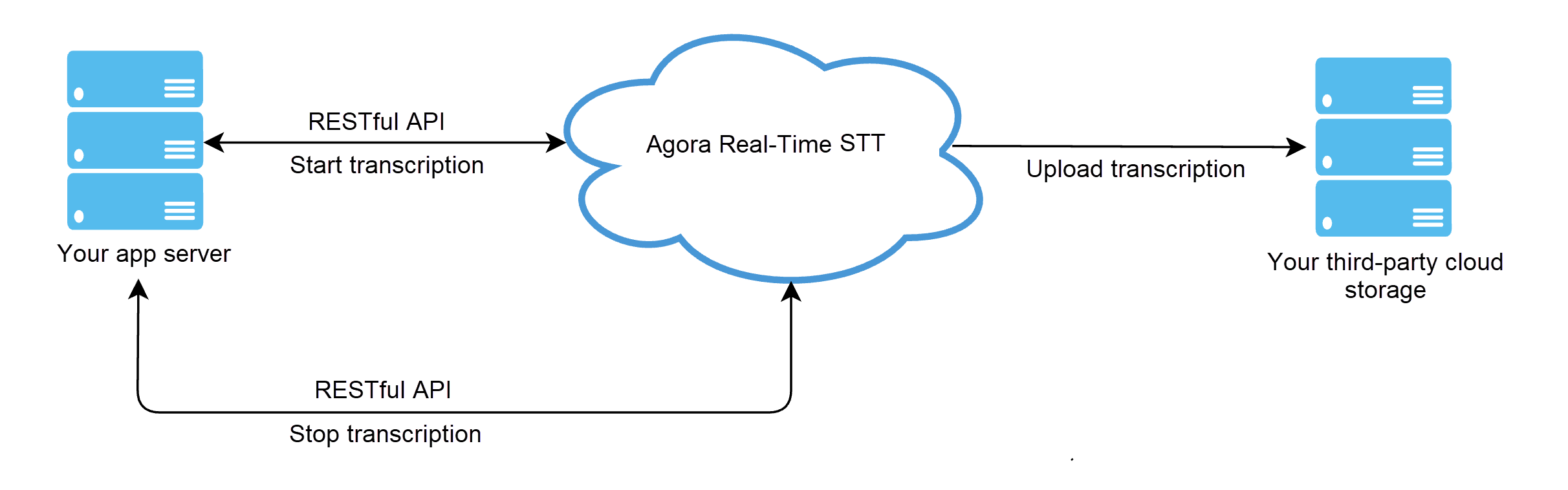

The following diagram outlines the process of implementing Real-Time STT:

real-time-stt-flow

This process includes calling the following RESTful API methods:

start: Call this method to join the channel and start transcription. If the request is successful, you receive an agent_id in the response body that identifies the current transcription session.
update: While a transcription agent is running, use the update method to modify transcription or translation languages or update the hosts for which transcription is enabled.
query: Use this method to query the agent status between start and stop calls.
stop: Call this method to stop transcription.

Prerequisites

To follow this procedure, you must:

Have a valid Agora Account.
Have a valid Agora project with an app ID and a temporary token or a token server. For details, see Agora account management.
Have a computer with access to the internet. If your network has a firewall, follow the steps in Firewall requirements.
Join a Video SDK channel as a host and start streaming. Refer to the Voice SDK quickstart guide.

Project setup

To enable Real-Time STT before using it for the first time, take the following steps:

Log in to Agora Console and open the Projects page.
Find the project for which you want to enable Real-Time STT and click the ✏️ icon.
On the Edit Project page, find Real-Time Speech-to-Text and click Enable Real-Time-STT.
Click Enable Real-Time STT and Confirm.

Now you can use Agora Real-Time STT and see the usage statistics on the Usage page.

Implement Real-Time STT

This section presents sample API calls to start, stop, update, and query a Real-Time STT agent.

Authentication

Real-Time STT RESTful APIs require basic HTTP authentication. Set the Authorization parameter to a Base64-encoded credential in every HTTP request header. For details on how to get the Authorization value, see RESTful authentication.

Start an agent

Call start to start subtitle recording and translation.

When the request is successful you receive an agent_id in the HTTP response body. This ID is a unique identifier of your transcription session.

Request example

Following is a simple request example to start a Real-Time STT agent. Refer to Encrypt captions, Record captions, and Transcribe specified hosts for more feature configurations.

curl --request post \
  --url https://api.agora.io/api/speech-to-text/v1/projects/:appid/join \
  --header 'Authorization: Basic <credentials>' \
  --data '
{
  "languages": [
    "en-US"
  ],
  "name": "agora-test",
  "maxIdleTime": 50,
  "rtcConfig": {
    "channelName": "agora-test",
    "subBotUid": "47091",
    "pubBotUid": "88222"
  },
  "translateConfig": {
    "languages": [
      {
        "source": "en-US",
        "target": [
          "ar-SA",
          "id-ID",
          "fr-FR",
          "ja-JP"
        ]
      }
    ]
  },
  "captionConfig": {
    "sliceDuration": 60,
    "storage": {
      "accessKey": "test-oss",
      "secretKey": "test-oss",
      "bucket": "test-oss",
      "vendor": 2,
      "region": 3
    }
  }
}'

info

String UIDs are supported only on a 128 host environment, with full support planned in the near future.
pubBotUid and subBotUid are int type UIDs that must be different to avoid unknown issues.

Response example

Success

{
  "agent_id": "Agent ID.",
  "create_ts": null,
  "status": "RUNNING"
}

Parameter Name	Type	Description
`agent_id`	String	The ID of the agent.
`createTs`	Integer	The Unix timestamp (seconds) when the agent was created.
`status`	String	Agent Status: `IDLE`: The agent is not initialized. `STARTING`: The agent is starting. `RUNNING`: The agent is running. `STOPPING`: The agent is exiting. `STOPPED`: The agent exited successfully. `RECOVERING`: The agent is recovering. `FAILED`: Agent exit failed.

Failure

_4{ _4 "detail": "Details of the request failure.", _4 "reason": "The reason why the request failed." _4}

Query agent status

Call query to get the status of an agent during a transcription session. When the request is successful, you receive the current status and related information in the response body.

Request example

curl --request get \
  --url https://api.agora.io/api/speech-to-text/v1/projects/:appid/agents/:agentId \
  --header 'Authorization: Basic <credentials>'

Response example

Success

_6{ _6 "message": "Details of the request result.", _6 "agent_id": "Agent ID.", _6 "create_ts": null, _6 "status": "RUNNING" _6}
Failure

_6{ _6 "message": "Details of the failed request.", _6 "agent_id": "Agent ID.", _6 "create_ts": null, _6 "status": "FAILED" _6}

Update configuration

See Update configuration for details.

Stop the agent

Call stop to stop transcribing. When the request is successful, you receive the status of the transcription session in the response body.

Request example

curl --request post \
  --url https://api.agora.io/api/speech-to-text/v1/projects/:appid/agents/:agentId/leave \
  --header 'Authorization: Basic <credentials>'

Reference

This section contains content that completes the information on this page, or points you to documentation that explains other aspects to this product.

Demo app and source code

Check out the demo to try out Real-Time STT and evaluate its accuracy and latency.

You can also refer to the demo code on Github to see how captions and transcription are implemented. For more demo code, contact support@agora.io.

REST API middleware

Agora Go Backend Middleware is an open-source microservice that exposes a RESTful API designed to simplify Real-Time STT interactions with Agora. Written in Golang and powered by the Gin framework, this community project serves as a middleware to bridge front-end applications using Agora's Video SDK or Voice SDK with Agora's RESTful APIs.
